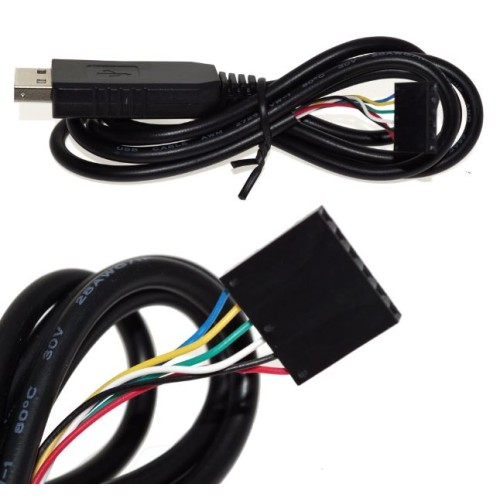

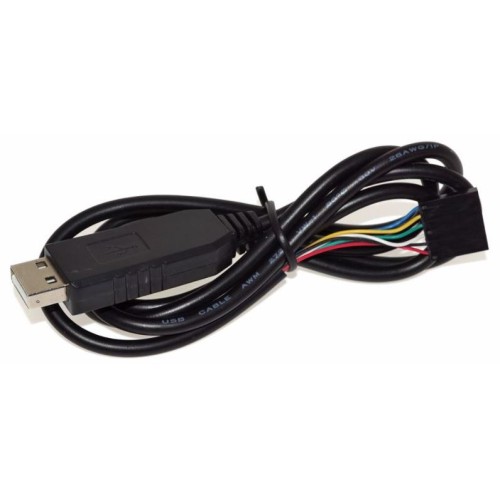

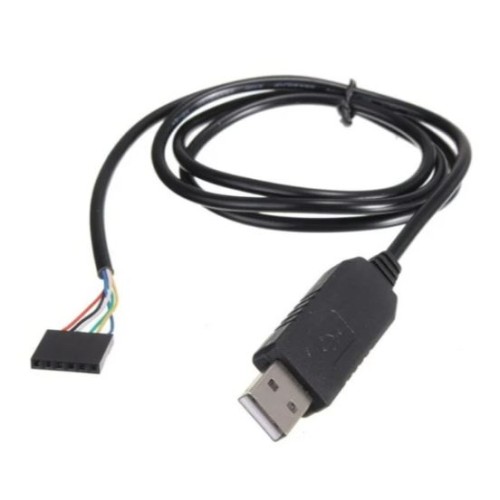

FTDI based USB to TTL Serial Cable are designed using the the standard FT232BL chipset.
The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.

The cables are available with a 6-way SIL, 0.1" connectorTTL levels are 3.3V / 5V
The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's FT232BL USB to Serial UART interface IC device which handles all the USB signalling and protocols.

The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.  Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232BL, which is encapsulated into the USB connector end of the cable. The other end of the cable comes with a selection of different connectors supporting various applications .

Cables are FCC, CE, RoHS compliant and are available at TTL levels 3.3V / 5V

The USB side of the cable is USB powered and USB 2.0 full speed compatible.
Each cable is 1.0m long and supports a data transfer rate up to 3 Mb

Red wire: 5V
Black wire: GND
White wire: RXD
Green wire: TXD
Yellow wire: RTS
Blue wire: CTS

Package Included:
1PCS* FTDI FT232BL USB to Serial adapter module
