Baofeng UV-5R Mini Dual-Band Handheld Radio

The Baofeng UV-5R Mini is a compact dual-band handheld radio designed for amateur radio operators, outdoor enthusiasts, and emergency communication use. As a modern evolution of the popular UV-5R series, the UV-5R Mini delivers reliable VHF and UHF performance in a smaller, lighter form factor. With a full-color display, USB-C charging, and wireless programming support, this portable two-way radio combines traditional functionality with modern convenience, making it an excellent choice for both beginners and experienced users.

Dual-Band VHF/UHF Performance

The UV-5R Mini operates on VHF (136–174 MHz) and UHF (400–480 MHz) frequencies, allowing compatibility with repeaters, simplex channels, and local communication networks. Selectable transmit power levels of 5 watts (high) and 2 watts (low) provide flexibility for maximizing range or conserving battery life. With support for up to 999 programmable memory channels, users can easily organize frequencies for amateur radio use, outdoor coordination, or event communication.

Modern Features in a Compact Design

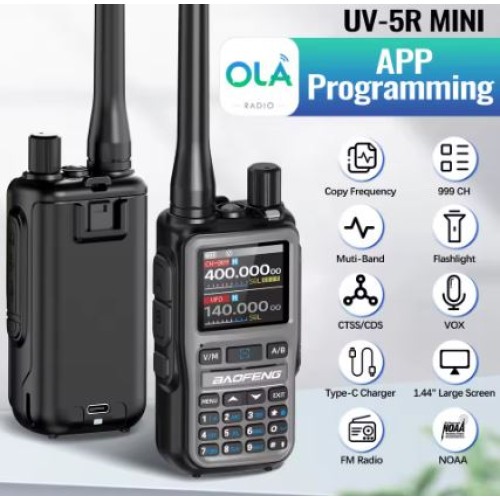

Despite its small size, the Baofeng UV-5R Mini includes features typically found in larger handheld radios. The 1.44-inch TFT color screen offers clear visibility of frequency and channel information, while the full keypad allows direct manual programming. The radio supports Bluetooth app programming, enabling wireless setup and channel management from compatible mobile devices, as well as traditional PC programming for advanced users.

USB-C Charging and Everyday Convenience

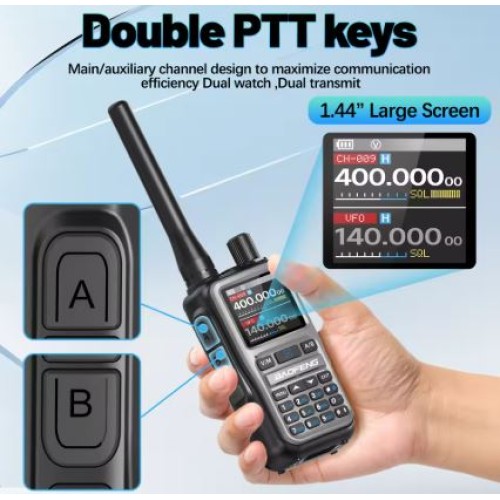

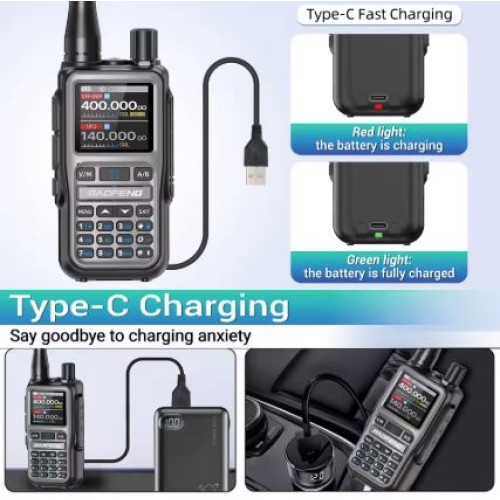

The UV-5R Mini is powered by a USB-C rechargeable lithium-ion battery, making it easy to charge from common power sources such as wall adapters, power banks, or laptops. This makes it especially well suited for travel, field use, and emergency preparedness kits. Additional features include dual PTT buttons for quick channel selection, VOX hands-free operation, frequency reverse, channel cloning between radios, and a built-in LED flashlight for low-light situations.

Baofeng UV-5R Mini Specifications

• Transmit Frequency: VHF 136–174 MHz / UHF 400–480 MHz

• Receive Frequency: FM 76–108 MHz, Airband 108–136 MHz, VHF/UHF up to 520 MHz

• Output Power: 5 W (High) / 2 W (Low)

• Memory Channels: Up to 999

• Battery: USB-C rechargeable lithium-ion (~1800 mAh)

• Display: 1.44″ TFT color screen

• Dimensions (body only): Approx. 108 × 52 × 37 mm

• Weight (with battery): Approx. 200 g

• Antenna Impedance: 50 Ω

• Accessory Connector: Standard 2-pin Kenwood-style

Compact, Versatile, and Reliable

With its compact size, dual-band VHF/UHF capability, USB-C charging, and extensive feature set, the Baofeng UV-5R Mini handheld radio is a versatile communication solution for amateur radio operators, outdoor activities, and emergency use. It delivers trusted Baofeng performance in a modern, portable design that fits easily into a pocket, backpack, or go-bag.

**Kindly note that radios are only available to licensed Radio Amateurs**
