RSS NL770L Dual-Band Mobile Antenna
96 cm VHF/UHF Antenna for Vehicle Installations

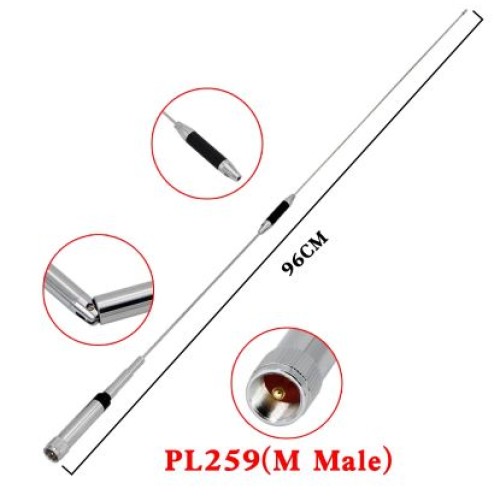

The RSS NL770L is a dual-band mobile antenna for 144 MHz VHF and 430 MHz UHF. It measures 96 cm and uses a PL259 connector for a matching mobile antenna mount.
Key Features
- Dual-band operation at the listed 144 and 430 MHz frequencies.
- Listed gain of 3.0 / 5.5 dBi and a maximum power rating of 200 W.
- 50 Ω impedance and listed VSWR below 1.5:1.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | RSS |
| Product code | NL770L |
| Model | NL770L |
| Listed frequencies | 144 / 430 MHz |
| Listed gain | 3.0 / 5.5 dBi |
| Maximum power | 200 W |
| VSWR | <1.5:1 |
| Impedance | 50 Ω |
| Connector | PL259 (UHF male) |
| Length | 96 cm |
Package Contents

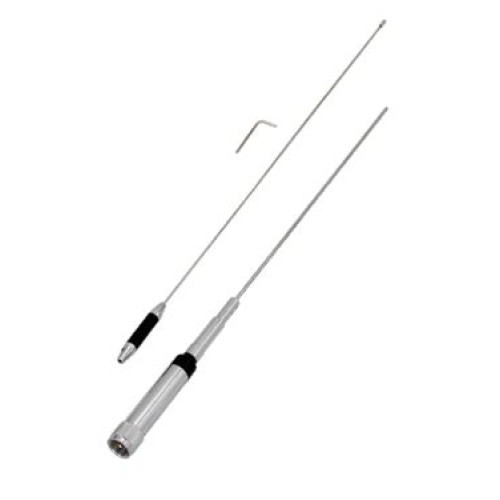

- 1 × RSS NL770L Dual-Band Mobile Antenna
Ideal For
- Compatible 2 m and 70 cm mobile amateur radio installations
- Vehicle installations with a matching antenna mount and clearance for a 96 cm antenna

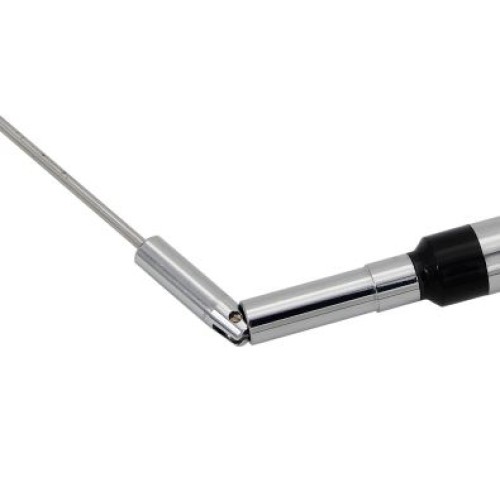

Check that your mount accepts a PL259 plug. The fold-over base shown in the product photos can help with overhead clearance when parked. Check SWR on your operating frequencies after fitting.
