RSS CR8900 Quad-Band Mobile Antenna
One Vehicle Antenna for Four Amateur Radio Bands
The RSS CR8900 is a mobile antenna for the 10 m, 6 m, 2 m and 70 cm amateur radio bands. The listed frequencies are 29.6, 50.5, 144 and 435 MHz.

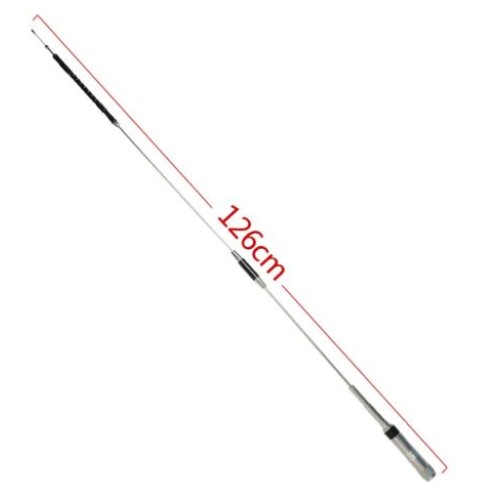

The antenna measures 126 cm and uses a stainless steel radiating element with a PL259 connector for a compatible vehicle mount. It is vertically polarised and has an omnidirectional radiation pattern.
Key Features
- Four-band mobile operation with a compatible amateur radio.
- 60 W maximum power rating as specified.
- Stainless steel radiating element and 50 Ω impedance.
- PL259 connection for a matching antenna mount.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | RSS |
| Product code | CR8900 |
| Model | CR-8900 |
| Antenna type | Quad-band mobile antenna |
| Listed frequencies | 29.6 / 50.5 / 144 / 435 MHz |
| Listed gain | 2.15 / 3 / 5.5 dBi |
| Maximum power | 60 W |
| VSWR | <1.5 |
| Impedance | 50 Ω |

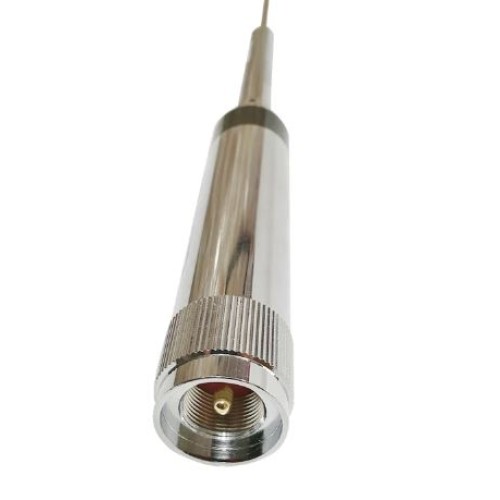

| Connector | PL259 |
| Polarisation | Vertical |
| Radiation pattern | Omnidirectional |
| Radiating element | Stainless steel |
| Length | 126 cm |
| Weight | 490 g |
Package Contents
- 1 × RSS CR-8900 Quad-Band Mobile Antenna
- 1 × Wrench
Ideal For
- Mobile amateur radio installations using 10 m, 6 m, 2 m and 70 cm
- Vehicle installations with a compatible PL259 antenna mount and clearance for a 126 cm antenna
Installation Information
Check connector fit and overhead clearance before fitting. Check SWR on the frequencies you intend to use after installation.
CR8900 Quad Band Mobile Antenna
- Brand: Shengda
- Product Code: CR8900
- Availability: 6
-
R949.00
