Baofeng UV-25 PRO GPS - 10 Watt Portable Radio

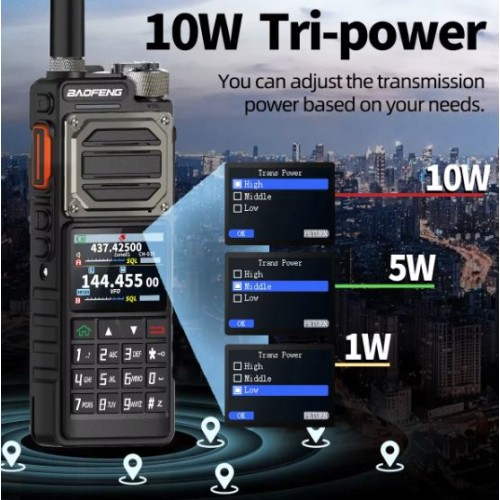

★【High Power & Enhanced Signal】

Equipped Tri-Power settings ( high power, medium power and low power) ,ensuring robust signals, enhanced obstacle penetration, and extended reach for both transmission and reception distances.

【Broad Frequency Range】

It supports UV dual band transmission and a multitude of reception frequency bands including 136-174MHz, 400-520MHz, 65-108MHz, 108-136MHz, 200-260MHz, 350-390MHz, and NOAA weather channels, and also boasts a storage capacity of up to 999 channels. This feature guarantees communication across various bands and access to important weather updates.

【Long-Lasting Battery Life】

Equipped with a 2800mAH high-capacity battery and a Type-C charging port, it ensures extended operational times and convenient emergency charging with flexible power on the go.

【User-Friendly Design】

The device has large buttons and a friction-enhanced power-on knob for easy blind operation. Its metal construction makes it sturdy and resistant to falls and impacts, and it is equipped with a top flashlight that can serve as an SOS signal during emergencies, adding/deleting a memory channel,adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels. Support Chirp quick programming.

【One Touch Frequency Search / Wireless Copy Frequency】

Use the [SK1] key to clone frequencies between devices, streamlining communication processes, making it more convenient and efficient. This feature enables efficient setup and frequency management, making it user-friendly for both beginners and experienced users.

【Type-C Fast Charger】

Type-C charging is a trend for mobile devices as it has low requirements for power sources and places. The UV-25 is Type-C USB rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.

【SMA-Female Jack】

Compatible with SMA-Female antenna(Especially with our tactical antenna will even be better).

【K-port】

Compatible with K-port (2 Pin) headset, speaker mic, programming cable.

  • Frequency range:
    Multi Band
    AM: 108-136MHz (Rx)
    VHF: 136-174MHz (Rx/Tx)
    VHF: 200-260MHz (Rx/Tx)
    UHF: 400-520MHz (Rx/Tx)
    UHF: 350-390MHz (Rx)
    FM: 65-108MHz (Rx)
    Tri Band
    136-174 / 220-260 / 400-520MHz
  • Channel Spacing: 25.0 KHz (Wide)/12.5 KHz (Narrow)
  • GPS
  • Memory Channel: 999 Groups
  • Operation Voltage: DC 7.4 V ±10%
  • Transmission Current: ≤2800 mA
  • Receive Sensitivity: 0.25 μV (12dB SINAD)
  • Rated Audio Power Output: 1W @16 ohms
  • Receive Current: ≤380 mA
  • Connection for Accessories: 2-pin Kenwood jack
  • Antenna Impedance: 50 Ohm
  • Dimensions: 7.1 x 2.7 x 1.8'' / 180 x 70 x 45mm
  • Weight: 0.59kg / 1.3lb

Feature and Functions of Baofeng UV-25 PRO Walkie Talkie

  • Dual watch, dual reception, and dual-band capabilities
  • Manageable power-on password protection
  • Scramble functions
  • Channel scan, frequency scan, and three scan and recovery methods: TO, CO, and SE
  • Stopwatch and alarm function
  • Programmable display illumination via keypad
  • Programmable repeater offset
  • Selectable high/medium/low power modes
  • Function beep on the keyboard
  • Battery save mode
  • Transmission time-out timer(TOT)
  • Busy channel lockout and programmable repeater offset
  • LED flashlight
  • Ten levels of squelch (SQL) adjustment

Gooseneck Antenna

  • Antenna Gain: 2.5 dBi
  • Antenna SWR: <1.5
  • Frequency: 136~174/400~520 MHz
  • Antenna Connector Type: SMA-Female
  • Max Power: 20 Watts
  • Length: 13.3’’ / 33.8cm


**Kindly note that radios are only available to licensed Radio Amateurs**
